Product Description

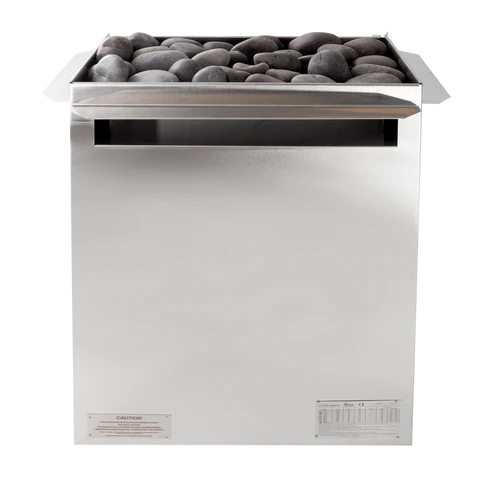

The Scandia Electric Ultra Sauna Heater - Large is a wall-mounted electric heater for large cedar sauna rooms. It spans 12.0, 15.0, and 18.0 kW, heating the room by convection while you pour water over the heated rocks for steam.
Scandia has built the Ultra line in the United States since 1964. The shell is 22-gauge brushed stainless steel, and an elevated solid rock tray sits above the elements so water poured on the rocks runs off rather than onto the heating elements.
The heater is UL Listed and includes a built-in thermal cut-out. Sauna rocks, a 60-minute timer, a thermostat, a thermostat sensor wall cover, and installation instructions are included. It wires directly into the building on a dedicated circuit, so a licensed electrician makes the connection. This tier is offered in single phase and three phase, with 480V available on select ratings.
Choose 12.0 kW for rooms up to 980 cubic feet, 15.0 kW up to 1,428 cubic feet, or 18.0 kW up to 1,680 cubic feet, at 208V, 240V, or 480V, with a 60-minute or 24-hour timer and the thermostat mounted on the control box or on the heater.
Ideal for: large home and commercial cedar sauna rooms up to 1,680 cubic feet, wired by a licensed electrician.
From The Therapeutic Patio - premium sauna equipment, built to last.
Each Scandia heater is built to order. We confirm your exact shipping timeline within 1-2 business days of your order - or email us before you buy for the current lead time on this product. Your order ships with free standard shipping to the lower 48.
Features
-
All-stainless build: 22-gauge brushed stainless steel shell.
-

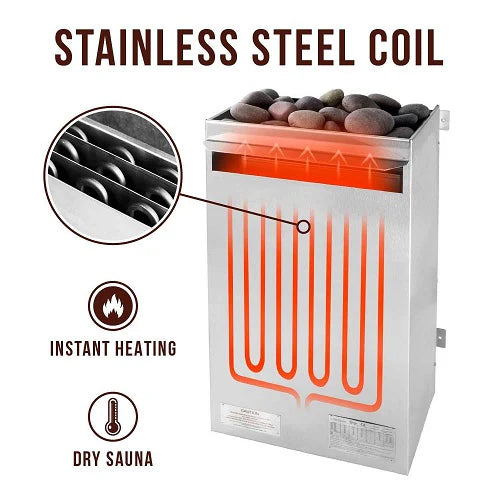

Convection airflow heats the room and the cedar surfaces.
-

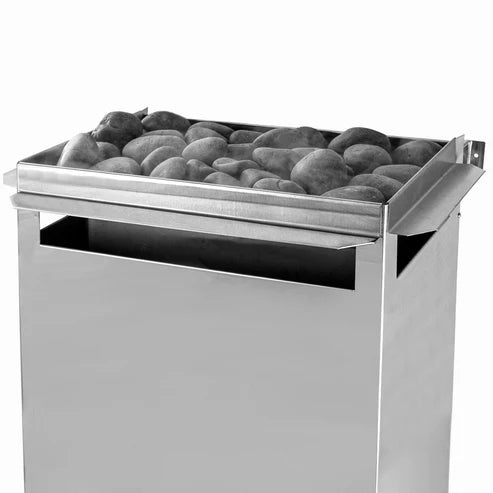

Elevated solid rock tray keeps water poured on the rocks off the heating elements.
-
UL Listed, with a built-in thermal cut-out.
-
Sauna rocks included (two 25 lb boxes cover a 12-18 kW heater).
-
60-minute timer and thermostat included; 24-hour timer optional.
-
Offered in single phase and three phase; 480V on select ratings.
-
Thermostat placement: on the control box or on the heater.
-
Hard-wired on a dedicated 208V, 240V, or 480V circuit.
-
Made in the USA since 1964 (Per Scandia).
Specifications
Ratings and capacity: 12.0 kW up to 980 cubic feet; 15.0 kW up to 1,428 cubic feet; 18.0 kW up to 1,680 cubic feet.
Voltage and phase: 208V, 240V, or 480V; single or three phase.
Amperage: 12.0 kW - 50 A at 240V 1P, 57.7 A at 208V 1P, 29 A at 240V 3P, 33.4 A at 208V 3P; 15.0 kW - 62.5 A at 240V 1P, 72.2 A at 208V 1P, 36.2 A at 240V 3P, 41.7 A at 208V 3P; 18.0 kW - 75 A at 240V 1P, 86.6 A at 208V 1P, 43.4 A at 240V 3P, 50 A at 208V 3P, 30 A at 480V 3P.

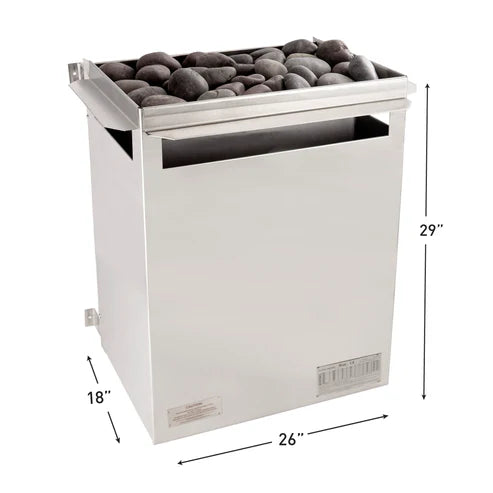

Dimensions: 26 in wide x 18 in deep x 29 in high.
Shell: 22-gauge brushed stainless steel with convection baffles.
Controls: 60-minute or 24-hour timer; thermostat on the control box or on the heater; 480V models use a control transformer.
Included: heater, sauna rocks, thermostat sensor wall cover, high-temperature wiring leads, installation instructions.
Certification: UL Listed.
Warranty: Scandia 10-year limited on the shell, 1-year on parts; commercial installations 1 year.
