Product Description

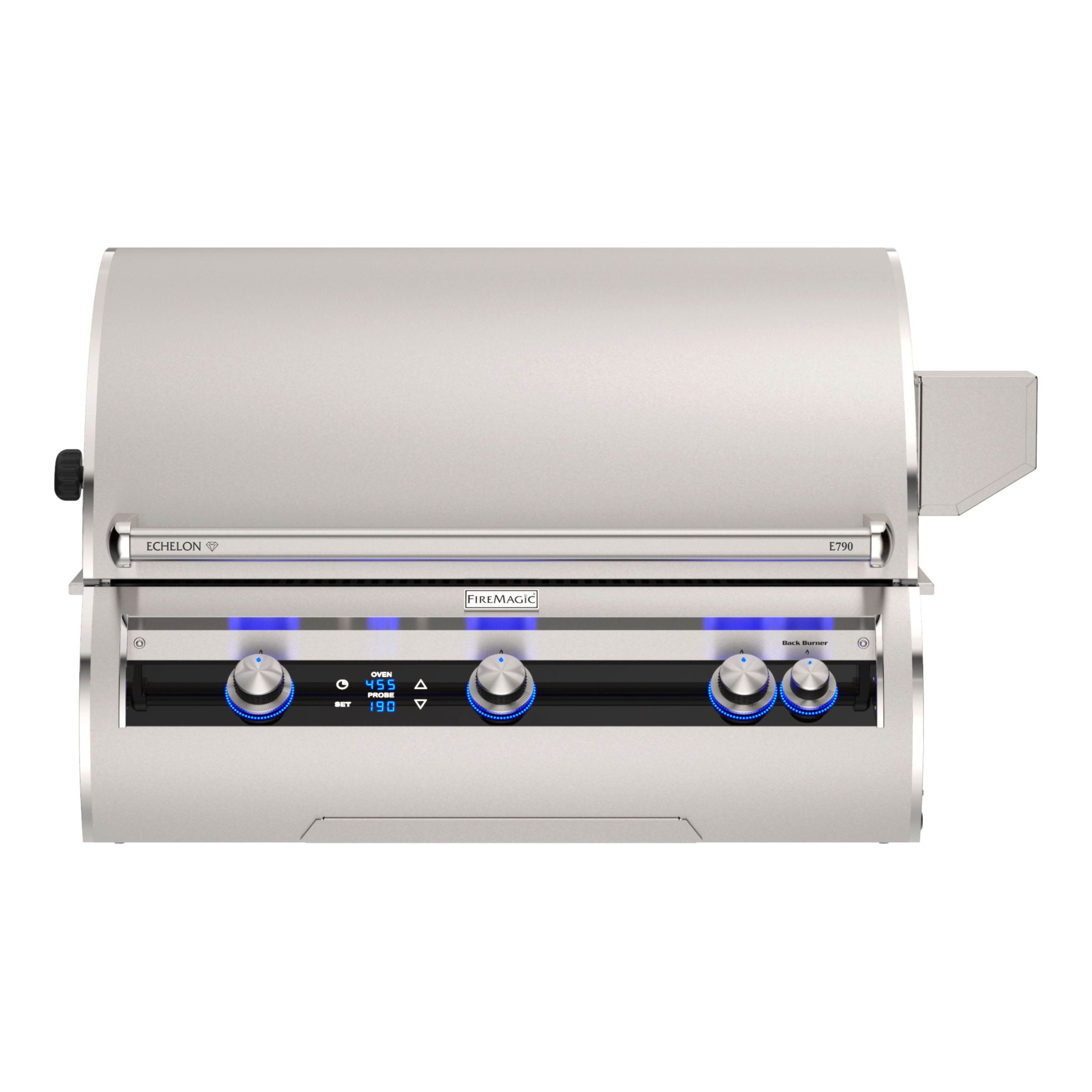

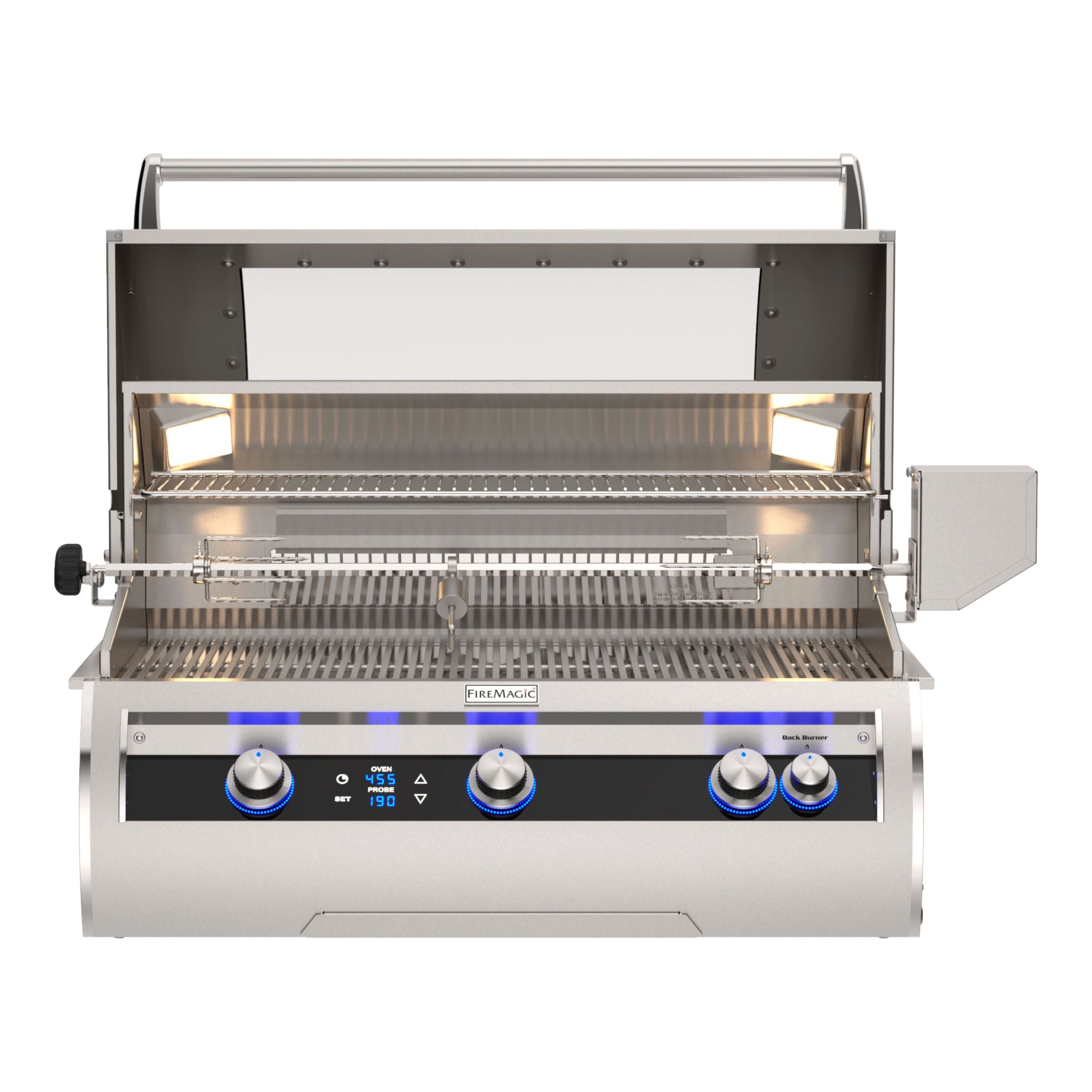

The Fire Magic Echelon Diamond E790i is a 36-inch built-in gas grill engineered for a permanent outdoor kitchen. Three quarter-inch-thick cast 304 stainless steel E-burners sit beneath patented Diamond Sear cooking grids, and a recessed infrared rotisserie backburner with a full kit is included rather than added on.
The digital under-glass thermometer adds a touchscreen readout with a meat probe and Bluetooth or Wi-Fi monitoring, so you can watch temperature from your phone. A double-walled 304 stainless hood opens to a full 90 degrees on a spring assist, and two angled halogen lights carry cooking into the evening.
Per Fire Magic, the three main burners produce 96,000 BTU and the infrared backburner adds 13,000 BTU. Hot-surface ignition with a flash-tube backup lights each of the three independent burner zones. An optional Magic View Window and a left-side infrared sear burner are available.
Ideal for: a fixed outdoor-kitchen island with a 37-inch cutout, a hard-piped gas line, and a grounded 120V outlet within reach.
The Therapeutic Patio - outdoor living, built to last.
Features
-
Patented Diamond Sear grids: flat-topped 304 stainless bars, covered for the life of the original owner.
-
Three cast 304 stainless E-burners: quarter-inch-thick, up to 12 lbs each.
-
Infrared rotisserie backburner included: recessed burner with cover, high-torque motor, spit rod, meat prongs, and counterbalance.
-
Digital under-glass thermometer: touchscreen with meat probe and Bluetooth/Wi-Fi remote monitoring.
-
Hot-surface ignition: push-to-light with flash-tube backup across three independent zones.
-
Double-walled 304 stainless hood: opens to 90 degrees with a spring assist.
-
1,080 sq in of cooking area: 792 sq in primary grid (36 x 22 in) plus a 288 sq in adjustable warming rack.
-
Two angled 12V halogen interior lights for evening grilling.
-
Contoured black-glass control panel with back-lit knobs and a master power switch.
-
14-inch ball-bearing drip tray with disposable foil liners.
-
Optional Magic View Window and optional left-side infrared sear burner.
-
Cart-ready: converts to freestanding with the 36-inch 790-SC24 portable cart base (sold separately).
-
Made in the USA by R.H. Peterson Co.
Specifications
Dimensions and Capacity
Primary cooking surface: 36 x 22 in (792 sq in)
Warming rack: 36 x 8 in (288 sq in)
Total cooking area: 1,080 sq in
Built-in cutout: 37 in W x 23.5 in D x 11.5 in H
Power and Performance
Main burners: three cast 304 stainless, 96,000 BTU
Infrared backburner: 13,000 BTU
Ignition: hot-surface with flash-tube backup
Electrical: 120V AC, 15-amp grounded GFCI circuit required
Construction
Burners: quarter-inch cast 304 stainless steel
Cooking grids: 304 stainless Diamond Sear
Hood and body: double-walled 304 stainless steel
Control panel: black glass with back-lit knobs
Models and Options
E790i-9E1N / 9E1P: natural gas / propane, three cast burners
E790i-9L1N / 9L1P: left-side infrared burner
Add -W for the Magic View Window
Warranty
Lifetime: cast stainless burners, Diamond Sear grids, stainless housing
15 years: brass valves, manifolds, backburner assembly (excluding ignition)
5 years: Flavor Grids and in-grill infrared burners
1 year: ignition, electronics, and thermometer
First two years labor allowance paid by Fire Magic
Installation and Compliance
Outdoor use only; not for indoor, garage, RV, or boat installation
Minimum 18-inch clearance from combustible construction
Insulating liner (model 3186-52) required for combustible enclosures
Certified to ANSI Z21.58 / CSA 1.6
California Proposition 65: this product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
