Product Description

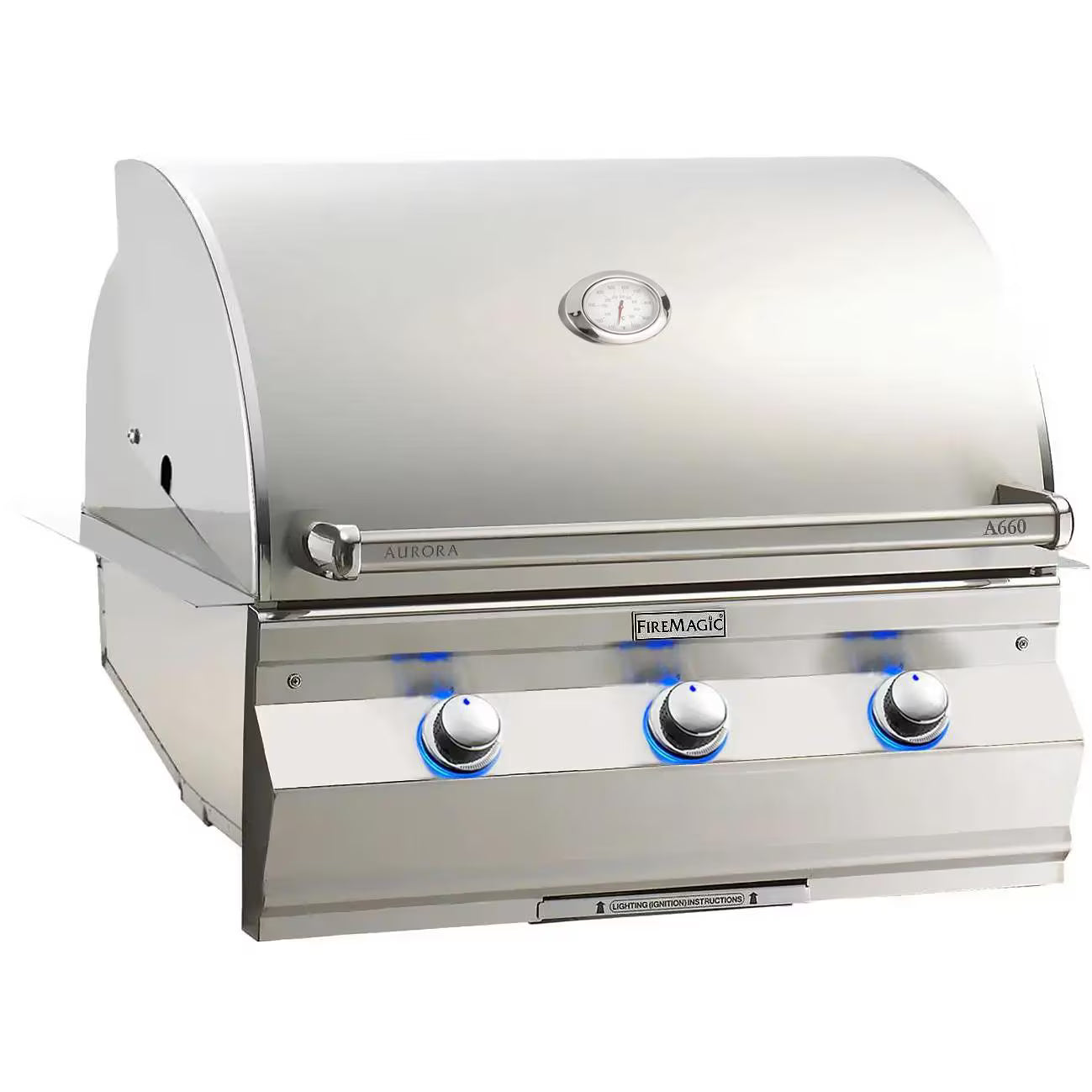

The Fire Magic Aurora A660i is a 30-inch built-in gas grill for a permanent outdoor kitchen. Three quarter-inch-thick cast 304 stainless steel E-burners sit beneath patented Diamond Sear cooking grids, delivering 660 square inches of primary cooking on a 31.25-inch cutout.
An analog thermometer with a polished stainless bezel reads to 1000 degrees F, and a double-walled 304 stainless hood opens to a full 90 degrees on a spring assist. Two 12V halogen lights and back-lit control knobs keep the grill usable after dark, and hot-surface ignition with a flash-tube backup lights each burner.
Per Fire Magic, the three main burners produce 75,000 BTU; rotisserie models add an 18,000 BTU infrared backburner with a complete kit. Choose all-cast or left-side infrared burners, natural gas or propane, and add the optional Magic View Window.
Ideal for: a fixed outdoor-kitchen island with a 31.25-inch cutout, a hard-piped gas line, and a grounded 120V outlet within reach.
The Therapeutic Patio - outdoor living, built to last.
Features
-
Patented Diamond Sear grids: flat-topped 304 stainless bars, covered for the life of the original owner.
-
Three cast 304 stainless E-burners: quarter-inch-thick, up to 12 lbs each.
-

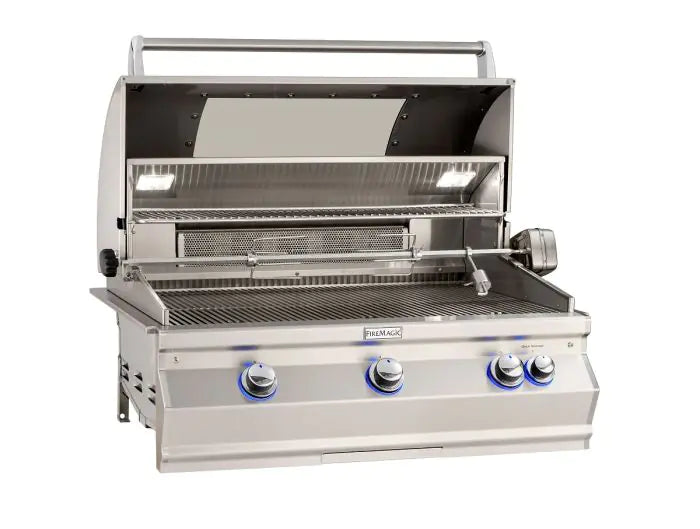

Optional infrared rotisserie backburner: 18,000 BTU with cover, high-torque motor, spit rod, meat prongs, and counterbalance (8-series models).
-
Analog hood thermometer: polished stainless bezel, reads to 1000 degrees F.
-
Hot-surface ignition with flash-tube backup.
-
Double-walled 304 stainless hood: opens to 90 degrees with a spring assist.
-
900 sq in of cooking area: 660 sq in primary grid (30 x 22 in) plus a 240 sq in adjustable warming rack.
-
Two 12V halogen interior lights and back-lit comfort-touch knobs.
-
Stainless Flavor Grids with heat-zone separators.
-
Disposable drip-tray system for straightforward cleanup.
-

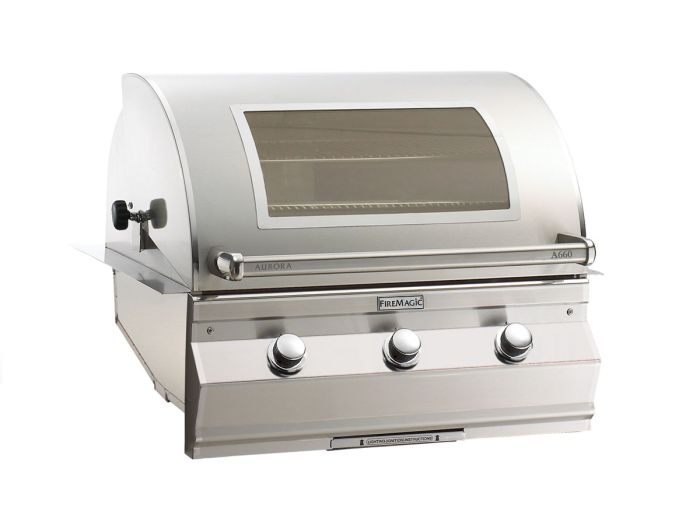

Optional Magic View Window and optional left-side infrared sear burner.
-
Cart-ready: converts to freestanding with the 30-inch 660-SC24 portable cart base (sold separately).
-
Made in the USA by R.H. Peterson Co.
Specifications
Dimensions and Capacity
Primary cooking surface: 30 x 22 in (660 sq in)
Warming rack: 30 x 8 in (240 sq in)
Total cooking area: 900 sq in
Built-in cutout: 31.25 in W x 23.5 in D x 11.5 in H
Power and Performance
Main burners: three cast 304 stainless, 75,000 BTU
Infrared backburner (8-series): 18,000 BTU
Ignition: hot-surface with flash-tube backup
Electrical: 120V AC, 15-amp grounded GFCI circuit required
Construction
Burners: quarter-inch cast 304 stainless steel
Cooking grids: 304 stainless Diamond Sear
Hood and body: double-walled 304 stainless steel
Flavor grids: stainless steel with heat-zone separators
Models and Options
A660i-7EAN / 7EAP: natural gas / propane, no rotisserie
A660i-8EAN / 8EAP: with rotisserie backburner and kit
Add L for a left-side infrared burner; add -W for the Magic View Window
Warranty
Lifetime: cast stainless burners, Diamond Sear grids, stainless housing
15 years: brass valves, manifolds, backburner assembly (excluding ignition)
5 years: Flavor Grids and in-grill infrared burners
1 year: ignition, electronics, and thermometer
First two years labor allowance paid by Fire Magic
Installation and Compliance
Outdoor use only; not for indoor, garage, RV, or boat installation
Minimum 18-inch clearance from combustible construction
Insulating liner (model 3176-52) required for combustible enclosures
Certified to ANSI Z21.58 / CSA 1.6
California Proposition 65: this product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
Shipping
We confirm your exact shipping timeline within 1-2 business days of your order - or email us before you buy for the current lead time on this product.
Your order ships with free standard shipping to the lower 48.
Product Manuals
