Product Description

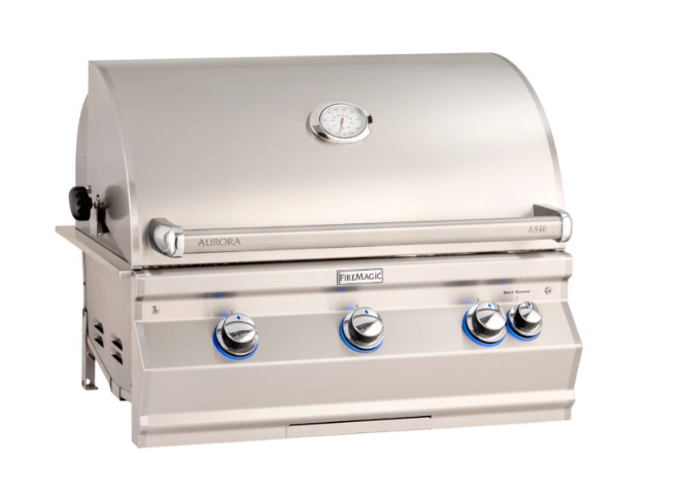

The Fire Magic Aurora A540i is a 30-inch built-in gas grill with a shallower 19.5-inch cutout depth, which suits islands with limited front-to-back space. Three quarter-inch-thick cast 304 stainless steel burners sit beneath patented Diamond Sear cooking grids across 540 square inches of primary cooking.
An analog thermometer with a polished stainless bezel reads to 1000 degrees F, and the double-walled 304 stainless hood opens to a full 90 degrees on a spring assist. Two 12V halogen interior lights and back-lit knobs extend cooking into the evening, and hot-surface ignition with a flash-tube backup lights each burner.
Per Fire Magic, the three main burners produce 63,000 BTU; rotisserie models add an 18,000 BTU backburner with a complete kit. Choose all-cast or left-side infrared burners in natural gas or propane.
Ideal for: a fixed outdoor-kitchen island with a 32 x 19.5-inch cutout, a hard-piped gas line, and a grounded 120V outlet within reach.
The Therapeutic Patio - outdoor living, built to last.
Features
-
Patented Diamond Sear grids: flat-topped 304 stainless bars, covered for the life of the original owner.
-
Three cast 304 stainless burners: quarter-inch-thick, up to 12 lbs each.
-
Optional rotisserie backburner: 18,000 BTU with high-torque motor, spit rod, meat prongs, and counterbalance (8-series models).
-
Analog hood thermometer: polished stainless bezel, reads to 1000 degrees F.
-
Hot-surface ignition with flash-tube backup.
-
Double-walled 304 stainless hood: opens to 90 degrees with a spring assist.
-
780 sq in of cooking area: 540 sq in primary grid (30 x 18 in) plus a 240 sq in adjustable warming rack.
-
Two 12V halogen interior lights and back-lit comfort-touch knobs.
-
Stainless Flavor Grids positioned between the burners and grids.
-
Disposable drip-tray system with four included liners.
- Optional left-side infrared sear burner.
-
Field-convertible fuel hardware with natural gas and propane orifice sets (documented service path).
-
Made in the USA by R.H. Peterson Co.
Specifications
Dimensions and Capacity
Primary cooking surface: 30 x 18 in (540 sq in)
Warming rack: 30 x 8 in (240 sq in)
Total cooking area: 780 sq in
Built-in cutout: 32 in W x 19.5 in D x 11.5 in H
Power and Performance
Main burners: three cast 304 stainless, 63,000 BTU
Rotisserie backburner (8-series): 18,000 BTU
Ignition: hot-surface with flash-tube backup
Electrical: 120V AC, 15-amp grounded GFCI circuit required
Construction
Burners: quarter-inch cast 304 stainless steel
Cooking grids: 304 stainless Diamond Sear
Hood and body: double-walled 304 stainless steel
Flavor grids: stainless steel
Models and Options
A540i-7EAN / 7EAP: natural gas / propane, no rotisserie
A540i-8EAN / 8EAP: with rotisserie backburner and kit
Add L for a left-side infrared burner
Warranty
Lifetime: cast stainless burners, Diamond Sear grids, stainless housing
15 years: brass valves, manifolds, backburner assembly (excluding ignition)
5 years: Flavor Grids and in-grill infrared burners
1 year: ignition, electronics, and thermometer
First two years labor allowance paid by Fire Magic
Installation and Compliance
Outdoor use only; not for indoor, garage, RV, or boat installation
Minimum 18-inch clearance from combustible construction
Insulating liner (model 23150-52) required for combustible enclosures
Certified to ANSI Z21.58 / CSA 1.6
